Silent & Quiet Toothed Chain Belt – High-Temperature Resistant Metal Conveyor Belt

Product Overview

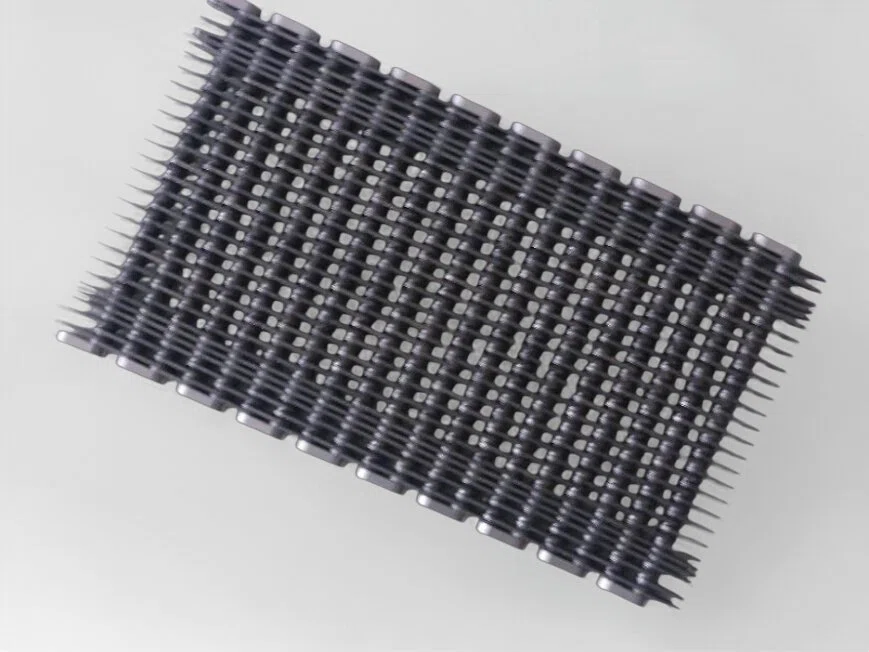

The Silent & Quiet Toothed Chain Belt is a high-temperature resistant metal conveyor belt specifically designed for transporting red-hot glassware, daily-use glass products, and ceramic ware at temperatures up to 500°C. It offers exceptional wear resistance, long service life, a smooth and non-slip conveying surface, high tensile strength, and the ability to operate continuously for 24 hours a day without interruption.

Manufactured from materials including Q235, manganese steel, alloy steel, and stainless steel 304, this belt can be customized in width according to the size of the glassware or ceramic products. Standard pitches available: 12.7 mm and 25.4 mm.

The chain features a flat shaft, single-shaft and double-shaft tile pin construction. It is widely used on glass bottle row-type forming machines (IS machines) and glass machinery conveyor systems. An innovative protective cap (countersunk, thickened chain link) protects the shaft ends, significantly extending the service life of the chain.

Key Features & Benefits

• High Temperature Resistance – Withstands continuous operating temperatures up to 500°C, ideal for hot glass and ceramic handling.

• Silent & Quiet Operation – Engineered for low noise, reducing vibration and speed variation compared to conventional conveyor chains.

• Smooth & Stable Conveying Surface – Provides a flat, even, and anti-skid surface for safe and precise product transport.

• Durable & Long Life – Made from hardened steel components with special surface treatment on links and pins, offering excellent wear resistance and high tensile strength.

• Continuous Operation – Designed for 24/7 non-stop industrial use with superior anti-tension properties.

• Protective Cap Design – Countersunk thickened chain links with protective caps shield the shaft ends, greatly extending operational life.

Construction & Materials

• Materials available: Q235, Manganese steel, Alloy steel, Stainless steel 304 (316 available upon request)

• Pin types: Flat shaft single-shaft and double-shaft tile pins

• Pitch options: 12.7 mm, 25.4 mm (custom pitches available)

• Width range: Customizable from 50 mm to 500 mm (based on glassware/ceramic size)

Performance Advantages Over Standard Chains

The Silent Conveyor Chain delivers a smooth, durable, and flat conveying surface with significantly lower vibration and speed variation than other conveyor products. The chain is manufactured from hardened steel components, ensuring long service life and excellent heat tolerance.

All links and pins undergo special treatment to achieve extreme durability and high tensile strength, providing stable performance and extended service life. All silent chains conform to international standards. We also offer custom production using 304/316 stainless steel or any other specified material.

Special recommendation: The double-pin chain offers superior performance and longer service life compared to the single-pin chain. Additionally, a protective plate is available for enhanced product safety.

Applications

• Glass bottle forming machines (IS machines / row-type glass forming machines)

• Glass machinery conveyor systems

• Transport of hot glassware, daily-use glass products, and ceramic ware

• High-temperature industrial conveying (up to 500°C)

Customization Options

• Width: Custom made from 50 mm to 500 mm according to product size

• Pitch: 12.7 mm, 25.4 mm, or custom

• Material: Q235, manganese steel, alloy steel, stainless steel 304/316

• Pin configuration: Single-shaft, double-shaft tile pin, flat shaft

• Protective cap & thickened chain link design (standard)
