Power Transmission RP HV CHAIN

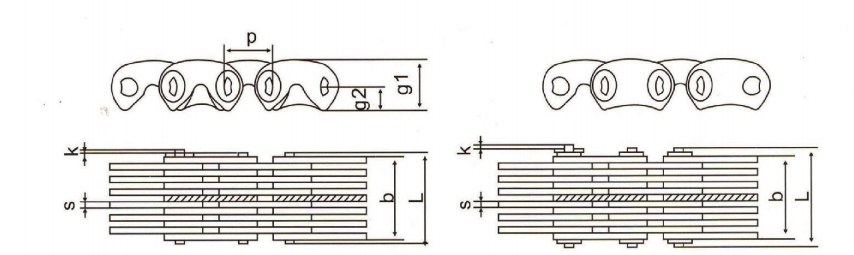

| 链号 | 节距 (p) mm | 片数 | 工作宽度 (b) min/max | 销轴长度 (l) max/min/g1/g2 | s | k | 抗拉强度 N (min) | 测量力 N | 重量 kg/m |
|---|---|---|---|---|---|---|---|---|---|
| 节距: 9.525 mm | |||||||||
| RP 302 | 9.525 | 2 | 3.10/3.40 | 7.0/4.2/6.4/4.0 | 3.7 | 4.9 | 4350 | 435 | 0.11 |
| RP 303 | 9.525 | 3 | 4.60/4.90 | 9.8/7.0/9.0/6.4 | 3.7 | 4.9 | 6550 | 655 | 0.16 |
| RP 304 | 9.525 | 4 | 6.00/6.40 | 12.2/9.6/11.2/9.0 | 3.7 | 4.9 | 8750 | 875 | 0.21 |
| RP 305 | 9.525 | 5 | 7.50/7.90 | 14.8/12.2/13.6/11.2 | 3.7 | 4.9 | 10900 | 1090 | 0.26 |
| RP 306 | 9.525 | 6 | 9.00/9.40 | 17.4/14.8/16.0/13.6 | 3.7 | 4.9 | 13100 | 1310 | 0.31 |
| RP 308 | 9.525 | 8 | 12.00/12.40 | 22.6/20.0/20.8/18.4 | 3.7 | 4.9 | 17500 | 1750 | 0.41 |
| RP 310 | 9.525 | 10 | 15.00/15.40 | 27.8/25.2/25.6/23.2 | 3.7 | 4.9 | 21900 | 2190 | 0.51 |
| RP 312 | 9.525 | 12 | 18.00/18.40 | 33.0/30.4/30.4/28.0 | 3.7 | 4.9 | 26200 | 2620 | 0.61 |
| 节距: 12.700 mm | |||||||||
| RP 402 | 12.700 | 2 | 3.20/3.50 | 7.0/4.2/6.4/4.0 | 4.0 | 5.5 | 7800 | 780 | 0.19 |
| RP 404 | 12.700 | 4 | 6.40/6.80 | 12.4/9.8/11.2/9.0 | 4.0 | 5.5 | 15600 | 1560 | 0.37 |
| RP 406 | 12.700 | 6 | 9.60/10.00 | 17.8/15.2/16.0/13.6 | 4.0 | 5.5 | 23400 | 2340 | 0.55 |
| RP 408 | 12.700 | 8 | 12.80/13.20 | 23.2/20.6/20.8/18.4 | 4.0 | 5.5 | 31200 | 3120 | 0.73 |
| RP 410 | 12.700 | 10 | 16.00/16.40 | 28.6/26.0/25.6/23.2 | 4.0 | 5.5 | 39000 | 3900 | 0.91 |
| RP 412 | 12.700 | 12 | 19.20/19.60 | 34.0/31.4/30.4/28.0 | 4.0 | 5.5 | 46800 | 4680 | 1.09 |
| 节距: 15.875 mm | |||||||||
| RP 502 | 15.875 | 2 | 4.80/5.20 | 9.5/6.2/8.8/5.8 | 4.8 | 6.9 | 12100 | 1210 | 0.36 |
| RP 504 | 15.875 | 4 | 9.60/10.00 | 16.3/12.8/15.2/12.2 | 4.8 | 6.9 | 24200 | 2420 | 0.71 |
| RP 506 | 15.875 | 6 | 14.40/14.80 | 23.1/19.6/21.6/18.6 | 4.8 | 6.9 | 36300 | 3630 | 1.06 |
| RP 508 | 15.875 | 8 | 19.20/19.60 | 29.9/26.4/28.0/25.0 | 4.8 | 6.9 | 48400 | 4840 | 1.41 |
| RP 510 | 15.875 | 10 | 24.00/24.40 | 36.7/33.2/34.4/31.4 | 4.8 | 6.9 | 60500 | 6050 | 1.76 |
| RP 512 | 15.875 | 12 | 28.80/29.20 | 43.5/40.0/40.8/37.8 | 4.8 | 6.9 | 72600 | 7260 | 2.11 |
| 节距: 19.050 mm | |||||||||
| RP 1224 | 19.050 | 24 | 57.60/58.20 | 85.9/81.8/81.4/77.8 | 5.6 | 8.2 | 176000 | 17600 | 5.11 |
| RP 1226 | 19.050 | 26 | 62.40/63.00 | 92.7/88.6/88.0/84.4 | 5.6 | 8.2 | 191000 | 19100 | 5.53 |
| RP 1228 | 19.050 | 28 | 67.20/67.80 | 99.5/95.4/94.6/91.0 | 5.6 | 8.2 | 205000 | 20500 | 5.95 |
